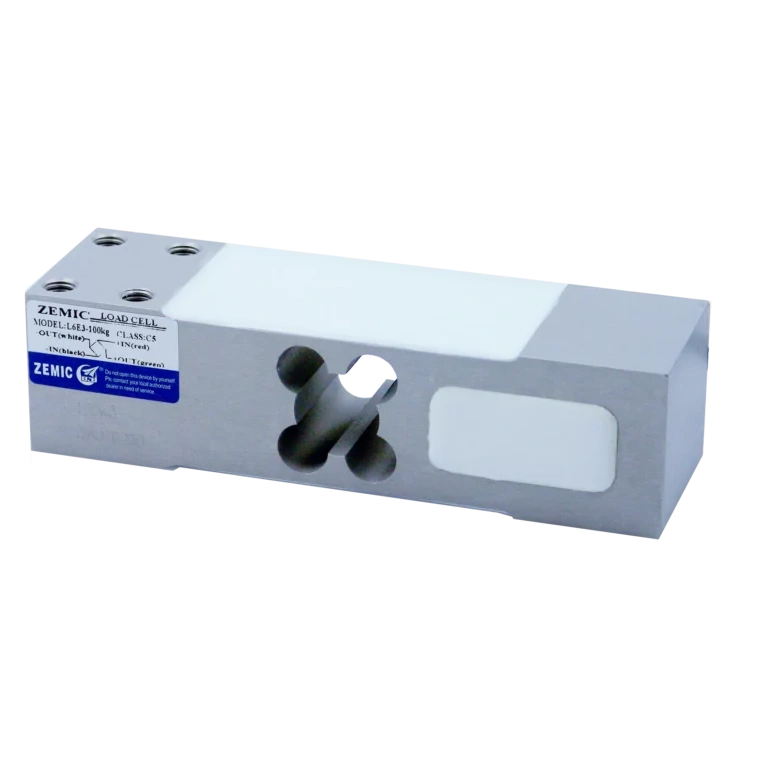

L6E3

Type: Single Point

Material: Aluminium-alloy

Ingress Protection: IP65

Capacities: 50kg, 100kg, 150kg, 200kg, 250kg, 300kg, 400kg, 500kg

Output Sensitivity: 2.0mV/V

Input Resistance: 406 ± 6Ω

Output Resistance: 350 ± 3.5Ω

Color coding:
Excitation (+): Red
Excitation (-): Black
Signal (+): Green
Signal (-): White
