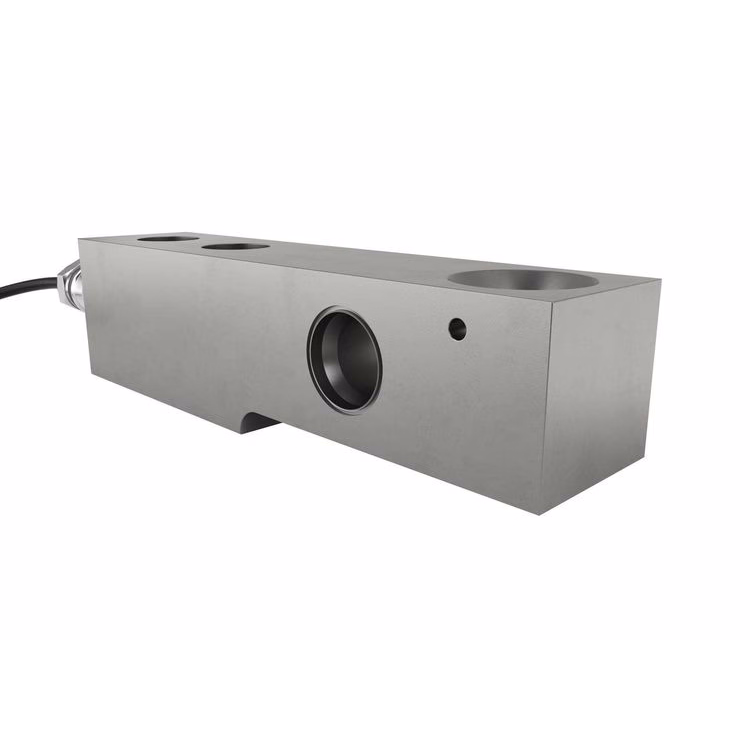

SB4

Type: Shear Beam

Material: Stainless Steel

Ingress Protection: IP68/IP69K

Capacities: 5kN, 10kN, 20kN, 50kN, 100kN

Output Sensitivity: 2.0mV/V

Input Resistance: 1100±50Ω

Output Resistance: 1000±2Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): White
Signal (-): Red
Shield: Yellow
