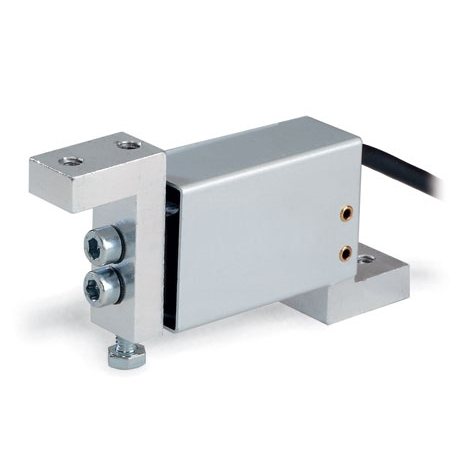

120

Type: Single Point

Material: Beryllium-copper alloy

Ingress Protection: Protected against humidity up to 95% (N.C.)

Capacities: 7.5kg, 10kg, 15kg, 20kg, 30kg, 50kg

Output Sensitivity: 2.0mV/V

Input Resistance: 400±20Ω

Output Resistance: 350±3Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): Red
Signal (-): White
Sense (+): Blue
Sense (-): Yellow
Shield: Transparent
