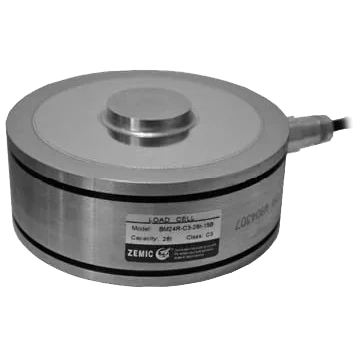

BM24R

Type: Ring Torsion

Material: Stainless steel

Ingress Protection: IP68

Capacities: 0.06t, 0.13t, 0.25t, 0.28t, 0,5t, 1t, 2t, 3.5t, 5t, 10t, 13t, 28t, 60t

Output Sensitivity: 1.0mV/V, 1.75mV/V or 2.0mV/V, depending on the capacity

Input Resistance: 1075 ± 100Ω, 1100 ± 100Ω, 1200 ± 100Ω, 1260 ± 100Ω or 1350 ± 200Ω, depending on the capacity

Output Resistance: 930 ± 0.5Ω, 1000 ± 0.5Ω, 1025 ± 25Ω or 1175 ± 0.5Ω, depending on the capacity

Color coding:
Excitation (+): Pink
Excitation (-): Gray
Signal (+): Brown
Signal (-): White
