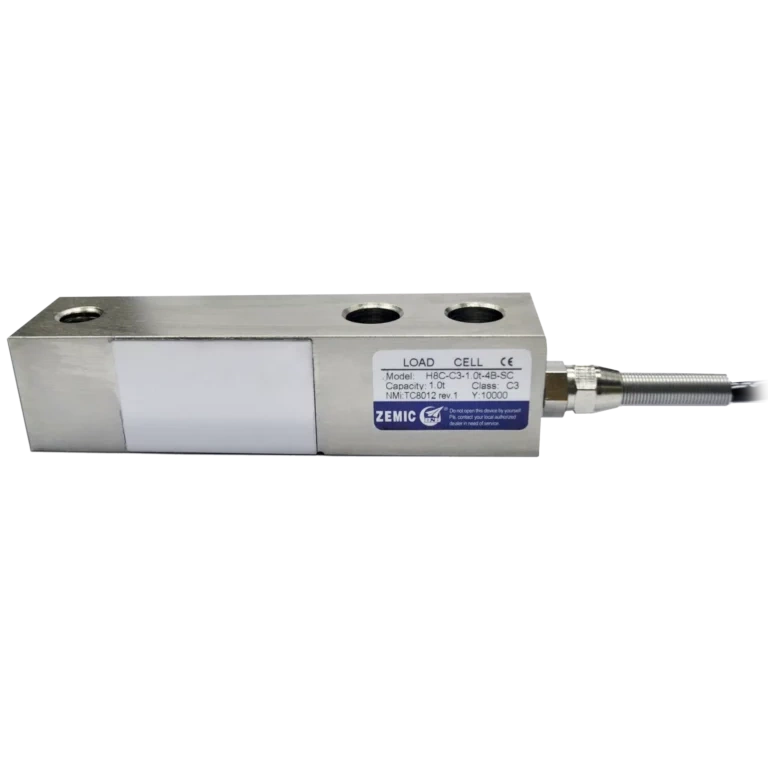

H8C

Type: Shear Beam

Material: Nickel plated alloy steel

Ingress Protection: IP67

Capacities: 100kg, 250kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t

Output Sensitivity: 3.0mV/V

Input Resistance: 350 ± 3.5Ω

Output Resistance: 350 ± 3.5Ω

Color coding:
Excitation (+): Red
Excitation (-): Black
Signal (+): Green
Signal (-): White
Sense (+): Blue
Sense (-): Yellow
