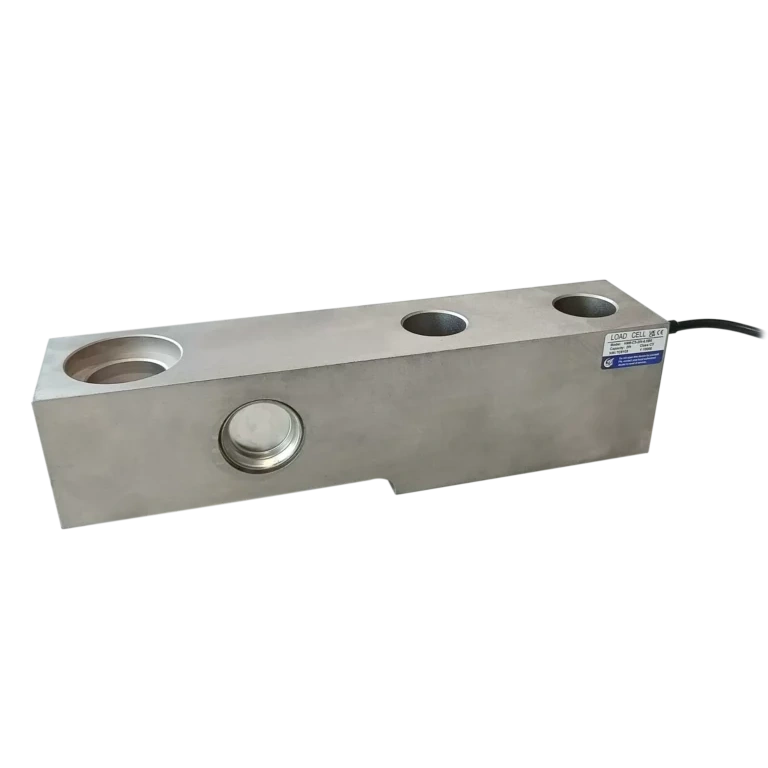

HM8

Type: Shear Beam

Material: Nickel plated alloy steel

Ingress Protection: IP68

Capacities: 1t, 2t, 3t, 5t, 10t, 15t, 20t, 25t, 30t

Output Sensitivity: 2.0mV/V

Input Resistance: 400 ± 10Ω

Output Resistance: 351 ± 3.0Ω

Color coding:
Excitation (+): Red
Excitation (-): Yellow
Signal (+): Blue
Signal (-): White
Sense (+): Brown
Sense (-): Black
