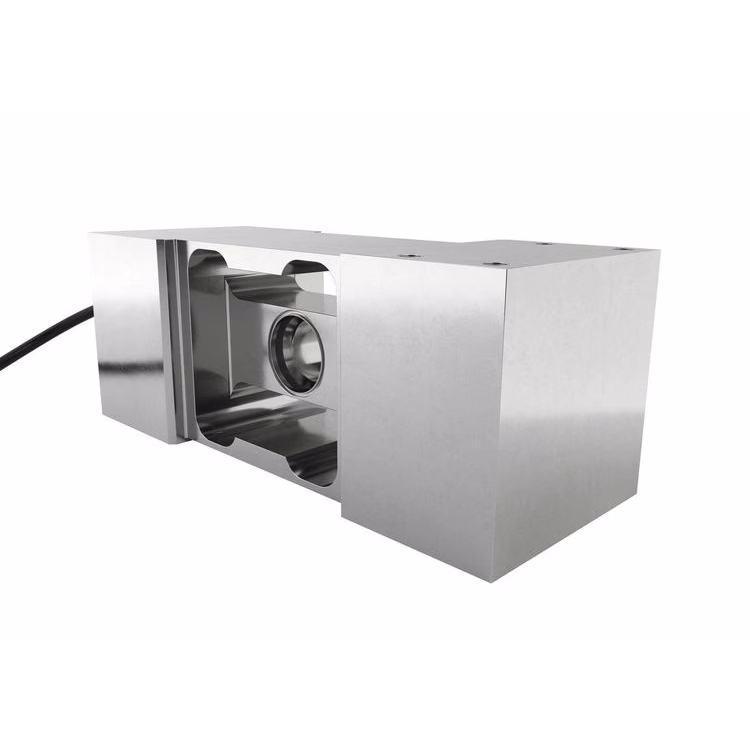

PCB

Type: Single Point

Material: Stainless Steel

Ingress Protection: IP68/IP69K

Capacities: 50kg, 100kg, 250kg, 500kg, 1000kg

Output Sensitivity: 2.0mV/V

Input Resistance: 1100±50Ω

Output Resistance: 960±50Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): White
Signal (-): Red
Sense (+): Blue
Sense (-): Brown
Shield: Yellow
