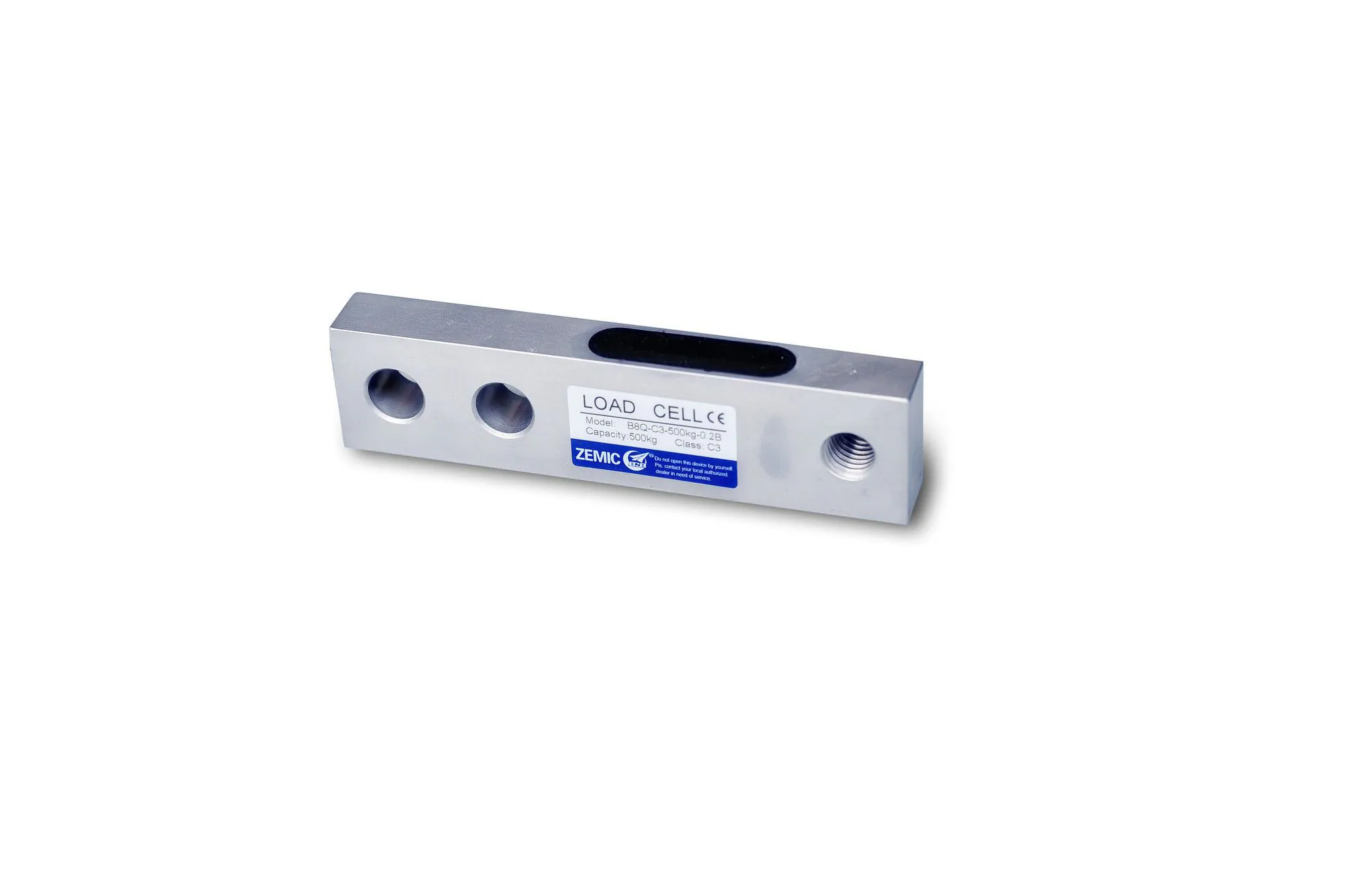

B8Q

Type: Shear Beam

Material: Stainless steel

Ingress Protection: IP67

Capacities: 200kg, 500kg, 1000kg, 2000kg

Output Sensitivity: 2.0mV/V

Input Resistance: 1106 ± 5Ω (1000 ± 5Ω for 200kg capacity)

Output Resistance: 1000 ± 3Ω

Color coding:
Excitation (+): Red
Excitation (-): Black
Signal (+): Green
Signal (-): White
Shield: Transparent
