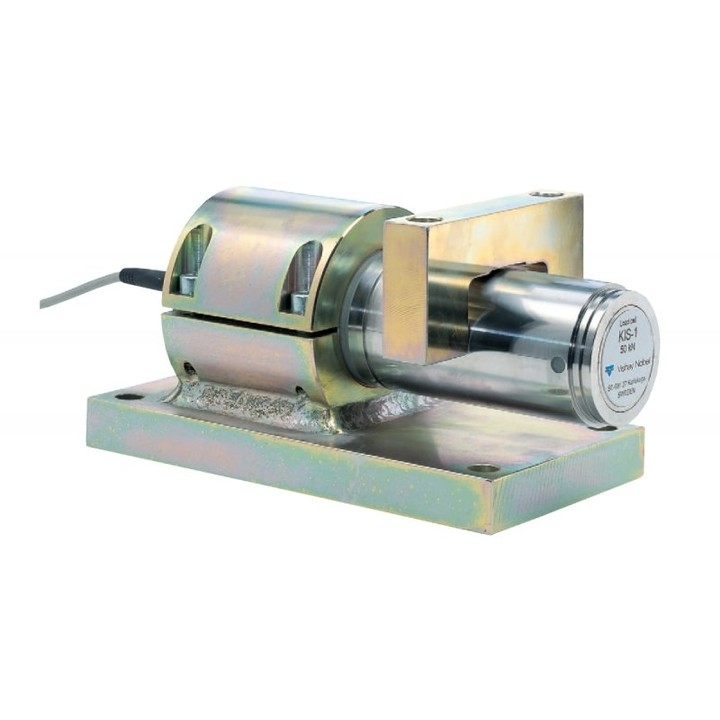

KIS-1

Type: Shear Beam

Material: Stainless Steel

Ingress Protection: IP67

Capacities: 50kN, 100kN, 200kN, 300kN, 500kN

Output Sensitivity: 2.04mV/V

Input Resistance: 350 ± 3Ω

Output Resistance: 350 ± 0.5Ω

Color coding:
Excitation (+): Red Stripe on Green
Excitation (-): Black
Signal (+): Green Stripe on White
Signal (-): White Stripe on Red
