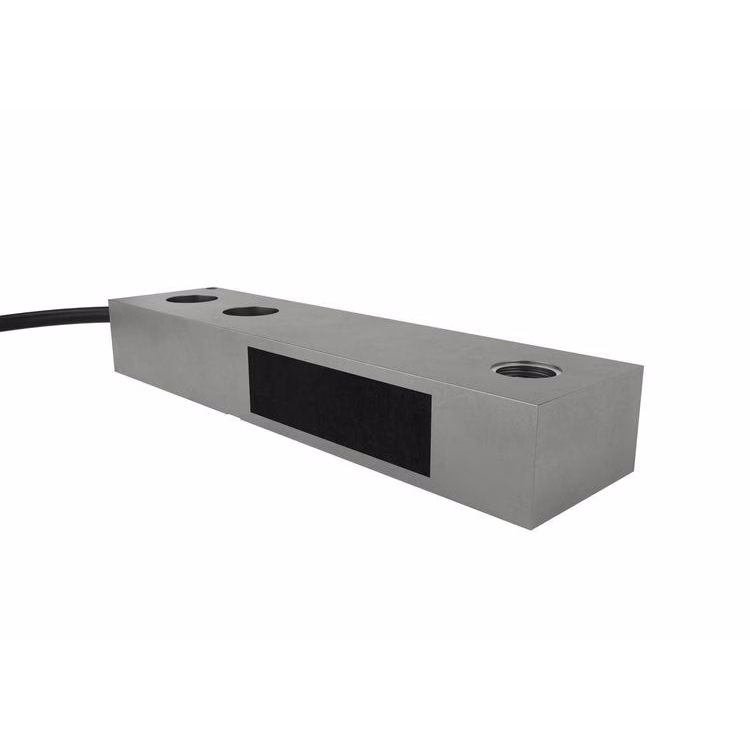

BK2

Type: Shear Beam

Material: Stainless Steel

Ingress Protection: IP67

Capacities: 200kg, 500kg, 1,000kg, 2,000kg

Output Sensitivity: 2.0mV/V

Input Resistance: 1,100±50Ω

Output Resistance: 1000±2Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): White
Signal (-): Red
Shield: Yellow
