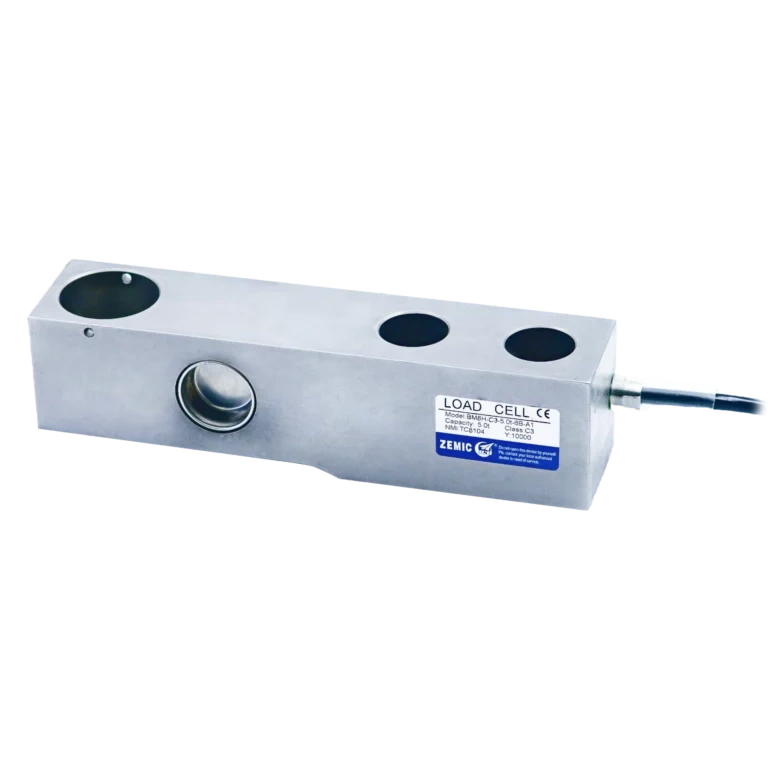

BM8H

Type: Shear Beam

Material: Stainless steel

Ingress Protection: IP68

Capacities: 0.5t, 1t, 1.5t, 2t, 5t

Output Sensitivity: 2.0mV/V

Input Resistance: 1000 ± 10Ω

Output Resistance: 1000 ± 10Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): White
Signal (-): Red
Sense (+): Yellow
Sense (-): Blue
