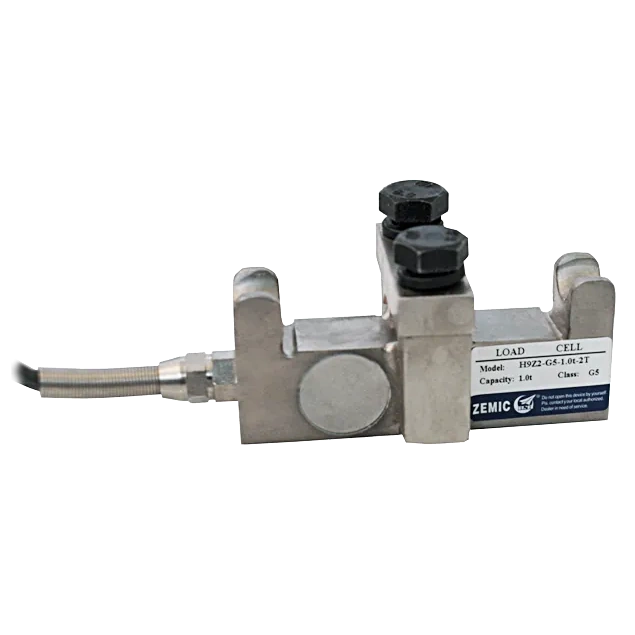

H9Z2

Type: Double Ended Shear Beam

Material: Nickel plated alloy steel

Ingress Protection: IP67

Capacities: 0.5t, 1t, 1.5t, 2t, 2.5t, 5t, 10t

Output Sensitivity: 0.57mV/V, 0.8mV/V or 10mV/V, depending on the capacity

Input Resistance: 370 ± 10Ω

Output Resistance: 350 ± 3.5Ω

Color coding:
Excitation (+): Red
Excitation (-): Yellow
Signal (+): Blue
Signal (-): White
Shield: Transparent
