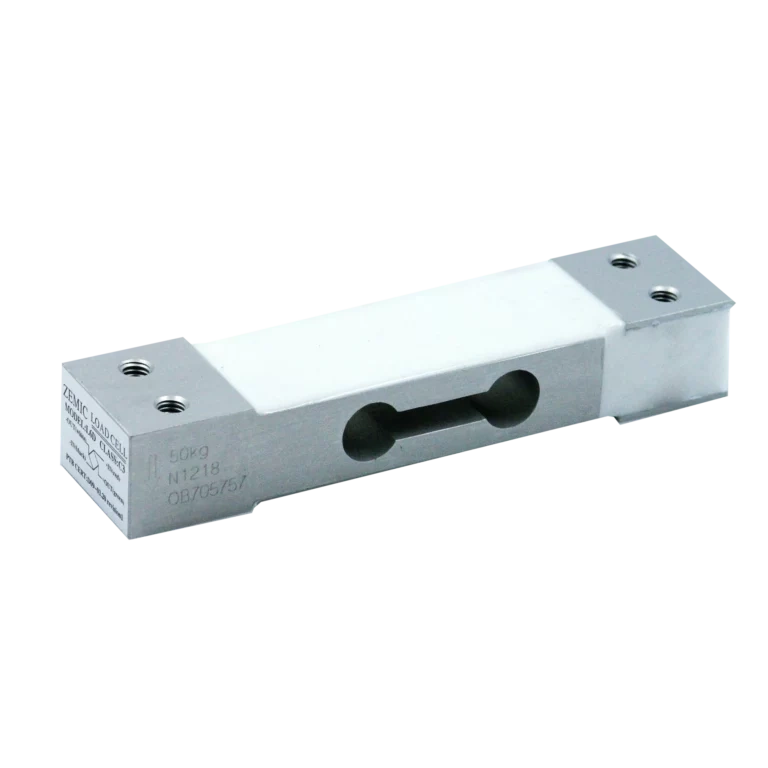

L6D

Type: Single point

Material: Aluminium-alloy

Ingress Protection: IP65

Capacities: 3kg, 5kg, 6kg, 8kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 50kg

Output Sensitivity: 2.0mV/V

Input Resistance: 406 ± 6Ω

Output Resistance: 350 ± 3Ω

Color coding:
Excitation (+): Red
Excitation (-): Black
Signal (+): Green
Signal (-): White
