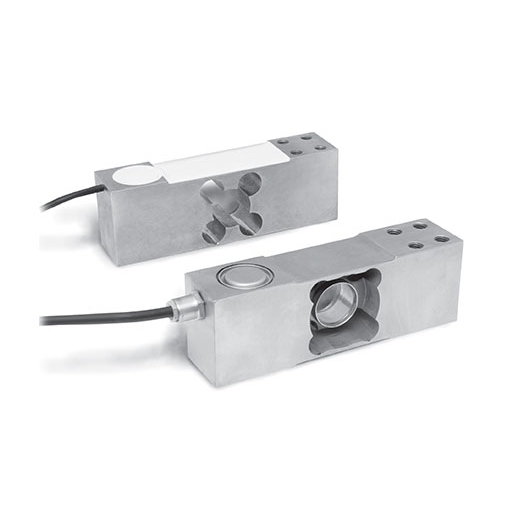

190

Type: Single Point

Material: Nickel-plated Alloy Steel

Ingress Protection: IP66/IP68/IP69K

Capacities: 15kg, 20kg, 30kg, 50kg, 75kg, 120kg, 200kg, 250kg, 350kg, 400

Output Sensitivity: 2.0mV/V

Input Resistance: 400±20Ω

Output Resistance: 350±3Ω

Color coding Model 190a:
Excitation (+): Green
Excitation (-): Black
Signal (+): Red
Signal (-): White
Shield: Transparent

Color coding Model 190i:
Excitation (+): Green
Excitation (-): Black
Signal (+): Red
Signal (-): White
Sense (+): Blue
Sense (-): Yellow
Shield: Transparent
