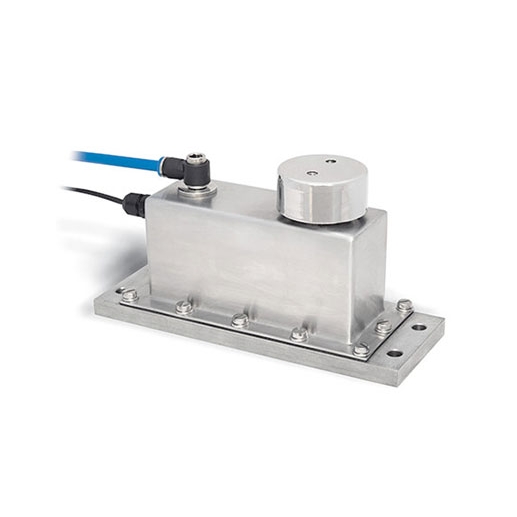

260

Type: Single Point

Material: Stainless Steel Housing

Ingress Protection: IP68

Capacities: 5kg, 7.5kg, 10kg, 15kg, 20kg, 20kg, 35kg, 50kg, 75kg, 120kg, 200kg

Output Sensitivity: 2.0mV/V

Input Resistance: 400±20Ω

Output Resistance: 350±3Ω

Color coding:
Excitation (+): Green
Excitation (-): Black
Signal (+): Red
Signal (-): White
Shield: Transparent
